Thermal performance is about how well your home resists unwanted heat coming in and keeps cool air inside when you need it. Two key measures are R-values, which show how effective insulation is, and U-values, which measure how much heat passes through materials like windows. Together, they help you understand how different parts of your home perform, and how well the whole building works as a system. By getting the balance right — with insulation, shading, ventilation, and efficient cooling — you can make your home more comfortable, reduce energy costs, and cope better with the Top End’s tropical climate.

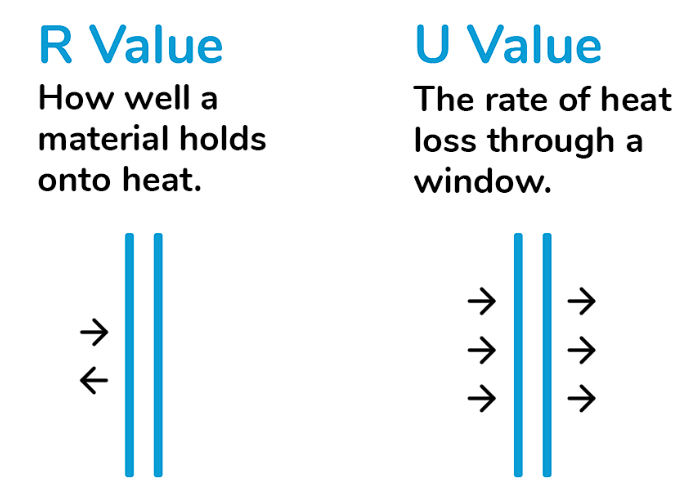

What R-values and U-values Mean

• R-value = Resistance value. It measures how well a material resists heat flow. The higher the R-value, the better the insulation. For example, R4.0 in a roof keeps more heat out and more cool air in.
• U-value = Conductance. It measures how much heat passes through a material (often glass). The lower the U-value, the less heat gets through. A U-value of 3.0 is better than 5.0.

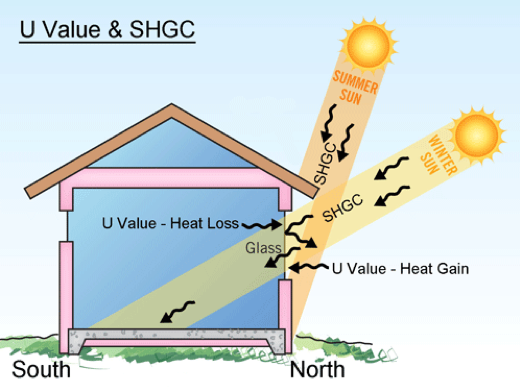

• SHGC (Solar Heat Gain Coefficient) = how much of the sun’s heat comes through glass. A lower SHGC means less solar heat entering your home.

R values and insulation

R-value determines the effectiveness of insulation. They measure how well insulation materials resist heat flow, with higher R-values indicating better insulation performance.

U values and windows

U-value is a measure of how much heat is transferred through the window. The lower the U value, the better the insulation properties of the window. Also known as thermal resistance, the U value is important for energy efficiency, reducing heating costs, and improving comfort.

The U value of a window is affected by a variety of factors. Each of these impacts the level of thermal transmittance:

1. Frame materials: uPVC and timber frames transfer less heat, keeping interiors cooler, while aluminium frames conduct heat quickly, increasing the U value
2. Type of glazing: Window glass, or glazing, affects heat flow. Single glazing lets heat through, double glazing reduces it, and low-E glass further improves energy efficiency.
